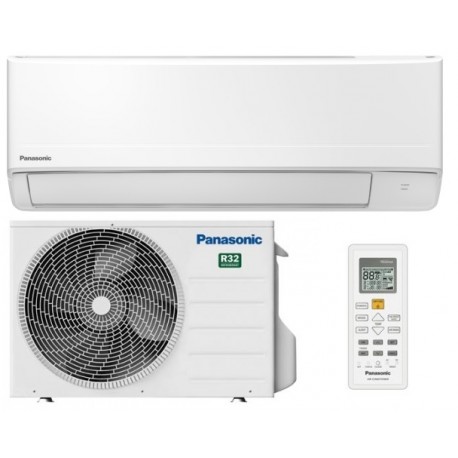

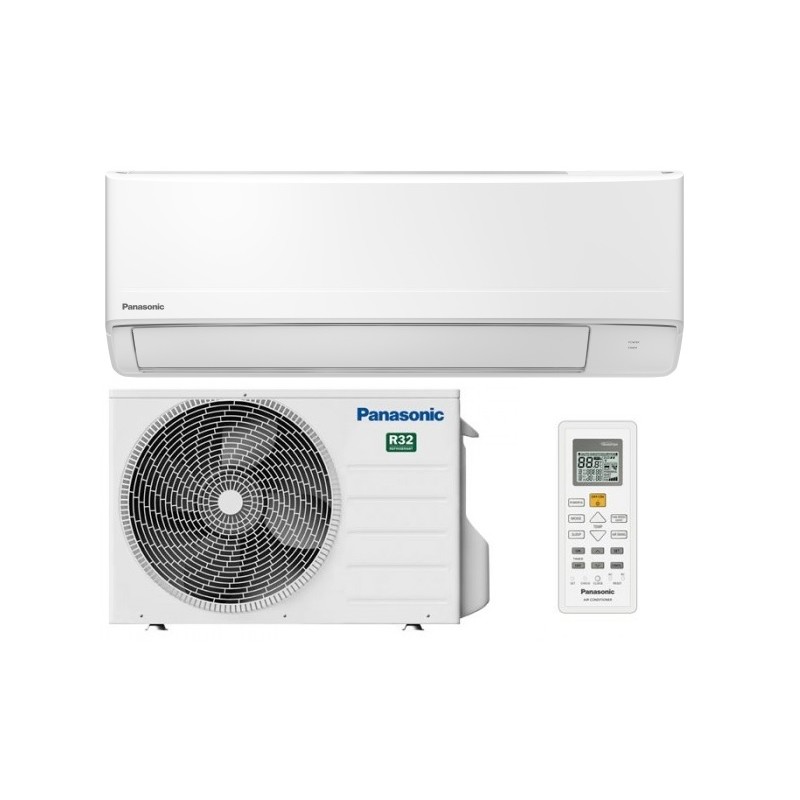

PANASONIC klimatska naprava BZ CS-BZ25ZKE/CU-BZ25ZKE + montaža na ključ z nosilnimi konzolami!
Nov izdelek
- Kompaktna zasnova s samo 779 mm širine
- Čistejši zrak s filtrom PM2.5
- Zelo tiho delovanje! Samo 20 dB (A)
- Krilca Aerowing za usmerjanje toka zraka
- Veliki energijski prihranki
- Hlajenje tudi pri –10 °C
- Izbirni internet in glasovno upravljanje
close
PRILOŽNOST VSEM KUPCEM! Lahko naročite tudi boljši, cenejši ali najnovejši tip aparata.
Samo ob obisku naše poslovalnice v Ljubljani.
| Proizvajalec |
|
| Zaloga po meri | Na voljo |
Tehnične lastnosti
| Izjemno kompaktna enota BZ · R32 | |||
|---|---|---|---|
| 2.50 kW | |||
| Kit | KIT-BZ25-ZKE | ||
| Cooling capacity (Nominal) | kW | 2,50 | |
| Cooling capacity (Min) | kW | 0,85 | |
| Cooling capacity (Max) | kW | 3,00 | |
| EER (Nominal) (1) | W/W | 3,68 | |
| EER (Min) (1) | W/W | 4,05 | |
| EER (Max) (1) | W/W | 3,33 | |
| SEER (2) | 6,30 A++ | ||
| Pdesign (cooling) | kW | 2,5 | |
| Input power cooling (Nominal) | kW | 0,68 | |
| Input power cooling (Min) | kW | 0,21 | |
| Input power cooling (Max) | kW | 0,90 | |
| Annual energy consumption cooling (3) | kWh/a | 139 | |
| Heating capacity (Nominal) | kW | 3,15 | |
| Heating capacity (Min) | kW | 0,80 | |
| Heating capacity (Max) | kW | 3,60 | |
| Heating capacity at -7°C | kW | 2,14 | |
| COP (Nominal) (1) | W/W | 4,09 | |
| COP (Min) (1) | W/W | 4,21 | |
| COP (Max) (1) | W/W | 3,50 | |
| SCOP (2) | 4,30 A+ | ||
| Pdesign at -10°C | kW | 1,9 | |
| Input power heating (Nominal) | kW | 0,77 | |
| Input power heating (Min) | kW | 0,19 | |
| Input power heating (Max) | kW | 1,03 | |
| Annual energy consumption heating (3) | kWh/a | 619 | |
| Indoor unit | CS-BZ25ZKE | ||
| Indoor power source | V | 230 | |
| Indoor recommended fuse | A | 16 | |
| Indoor connection indoor / outdoor | mm² | 4 x 1,5 | |
| Indoor air flow (Cool) | m³/min | 10,5 | |
| Indoor air flow (Heat) | m³/min | 9,5 | |
| Moisture removal volume | L/h | 1,5 | |
| Indoor sound pressure (Cool -Hi) (4) | dB(A) | 37 | |
| Indoor sound pressure (Cool -Hi) (4) | dB(A) | 37 | |
| Indoor sound pressure (Cool -Lo) (4) | dB(A) | 26 | |
| Indoor sound pressure (Cool -Q-Lo) (4) | dB(A) | 20 | |
| Indoor sound pressure (Heat -Hi) (4) | dB(A) | 36 | |
| Indoor sound pressure (Heat -Lo) (4) | dB(A) | 27 | |
| Indoor sound pressure (Heat -Q-Lo) (4) | dB(A) | 24 | |
| Indoor dimension (Height) | mm | 290 | |
| Indoor dimension (Width) | mm | 779 | |
| Indoor dimension (Depth) | mm | 209 | |
| Indoor net weight | kg | 8 | |
| Outdoor unit | CU-BZ25ZKE | ||
| Outdoor air flow (Cool) | m³/min | 30,4 | |
| Outdoor air flow (Heat) | m³/min | 30,4 | |
| Outdoor sound pressure (Cool -Hi) (4) | dB(A) | 48 | |
| Outdoor sound pressure (Cool -Hi) (4) | dB(A) | 48 | |
| Outdoor sound pressure (Heat -Hi) (4) | dB(A) | 49 | |
| Outdoor dimension (Height) (5) | mm | 542 | |
| Outdoor dimension (Width) (5) | mm | 780 | |
| Outdoor dimension (Depth) (5) | mm | 289 | |
| Outdoor net weight | kg | 24 | |
| Pipe diameter (Liquid) | Inch (mm) | 1/4 (6,35) | |
| Pipe diameter (Gas) | Inch (mm) | 3/8 (9,52) | |
| Pipe length range | m | 3 ~ 15 | |
| Elevation difference (in/out) (6) | m | 15 | |
| Pipe length for additional gas | m | 7,5 | |
| Additional gas amount | g/m | 10 | |
| Refrigerant (R32) / CO2 Eq. | kg / T | 0,52 / 0,35 | |
| Operating range (Cool - Min) | °C | -10 | |
| Operating range (Cool - Min) | °C | -10 | |
| Operating range (Cool - Max) | °C | +43 | |
| Operating range (Heat - Min) | °C | -15 | |
| Operating range (Heat - Max) | °C | +24 | |
celotna montaža klimatske naprave z materijalom na ključ obsega:
- - en preboj opečnatega zidu do 40
- - montaža zunanje in notranje enote do višine 3,5 m
- - izdelava plinske cevne in elektro povezave med enotama do 4 m
- - izdelava odvoda kondenza iz notranje in zunanje enote na osnovi prostega padca do 5 m v žleb ali pripravljen odtok
- - nosilne konzole – (500mm)
- - priklop na obstoječo električno napeljavo ob klima napravi ( 1m el. kabla 3x1.5)
- - drobni in montažni material
- - vakumiranje, polnjenje,zagon in svetovanje o uporabi naprave
- - prevoz
- - dodatnim meter inštalacije se obračuna 18 eur (v cene je celotna insalacija-freonska, električna in kondenz)
Akcijska cena vsebuje 9,5% DDV. Po akcijski ceni je nakup možen samo za fizične osebe!
Možnost ogleda naprave v razstavnem salonu Ljubljana!
Dodatne informacije, tel. 040/155-551
